Anaesthesia Systems for Rodents
Uni Vet Anesthesia machines

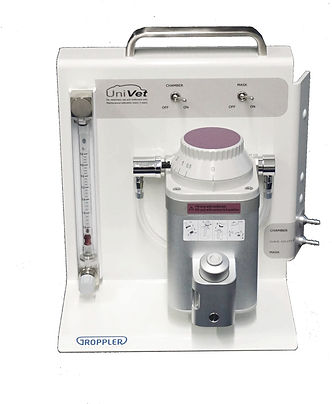

Uni Vet -Porta T-8
UV 17001-T8 Door
Anesthetic vaporizer 0-5% for isoflurane, latest safety filling device.
O² flow meter 0-5 l/min.
Powder-coated aluminium frame, white
2 outputs can be switched on and off individually
2 rocker switches
Dimensions: W/D/H 240/140/300mm
OPTIONS
UV 17015-4 4-way distributor. 4 outputs can be switched on and off individually.
Anti spill filling system.
Leak-tightness during the entire filling process.
When the process is completed, the filling valve of the vaporizer closes automatically.
PRECISE, RELIABLE AND ROBUST
State-of-the-art anesthetic vaporizer with anti-spill filling system and temperature compensation. Suitable for low flow from 0.5 l / min.
Scaling 0-5 V%.
2 outputs with toggle switch
are standard on the UniVet T-8.
= Fast switching of the gas supply
from chamber to mask or vice versa.
On the back with quick coupling socket, hose connection with one click
Uni Vet -Compact T-9
UV 17001-T9 UniVet Compact
Anaesthetic vaporizer 0-5% for isoflurane, safety filling device
O² flow meter 0-5 l/min.
Powder-coated aluminium frame, white
2 outputs can be switched on and off individually
2 rocker switches 1 O²-Flush push button
Dimensions: W/D/H 240/140/300mm
Minimal space requirement
Equipped with the proven isoflurane vaporizer of the UniVet T-8 model and 2 separately switchable outputs as well as an O² flush, the UniVet T9C is ideally equipped for most applications of today's anesthesia in the research laboratory.
Flowmeter O² 0- 5 ltr/min.
UniVap anesthesia vaporizer for isoflurane 0-5 V%
with safety filling valve (can be filled without a hose)
Ultra-compact housing - footprint approximately like DIN A5
Dimensions W/D/H 240x140x300 mm
2 outputs, each with an on/off switch.
O² Flush push button for quick flushing of the chamber (e.g. before removing the animals - to protect the user)
When ordering an equipment trolley, a holding claw is also attached to the frame of the anesthesia machine, with which the UniVet can be attached and removed very quickly and safely.
The equipment trolley is delivered in such a way that only the
Feet and bottle holder after delivery
have to be assembled by yourself. Tools and screws are of course included.
Uni Vet Trolley
Uni Vet anesthesia machine with equipment cart. Practical if there is not enough work space available or your workplace should remain mobile. Also ideal for small laboratories. Standard equipment with 4 steerable castors and parking brake, with drawer, shelf and bottle holder as well as a parking holder for gas bottles up to 10ltr. Dimensions at the lower corners 60 x 60 cm, height 120 cm. Can be expanded individually on request with many extras such as baskets and telescopic holders.
-
UV 17019
-
very stable design
-
5 steerable castors
-
Parking brake
-
Drawer and shelf
-
Holder for O² gas cylinder
OPTIONS
-
UV 17019-OS equipment trolley, as described above, with storage space instead of a drawer.
